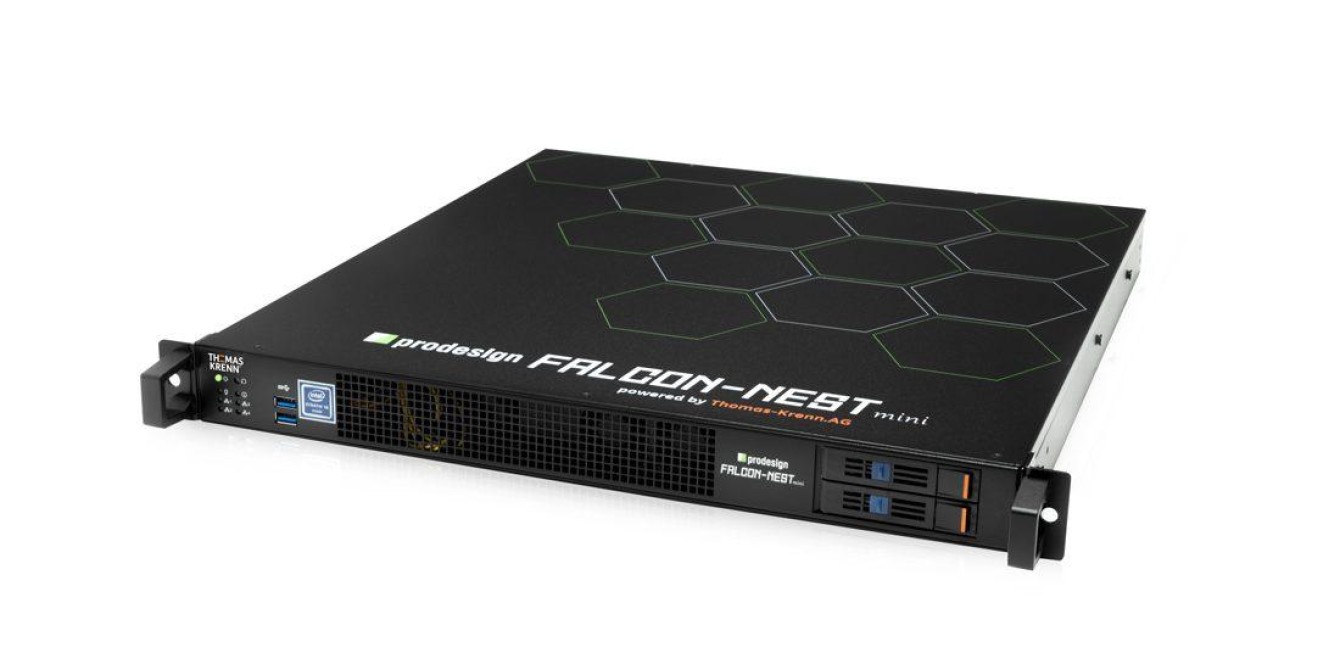

Falcon Nest mini Serveransicht homepage

prodesign FALCON-NEST mini

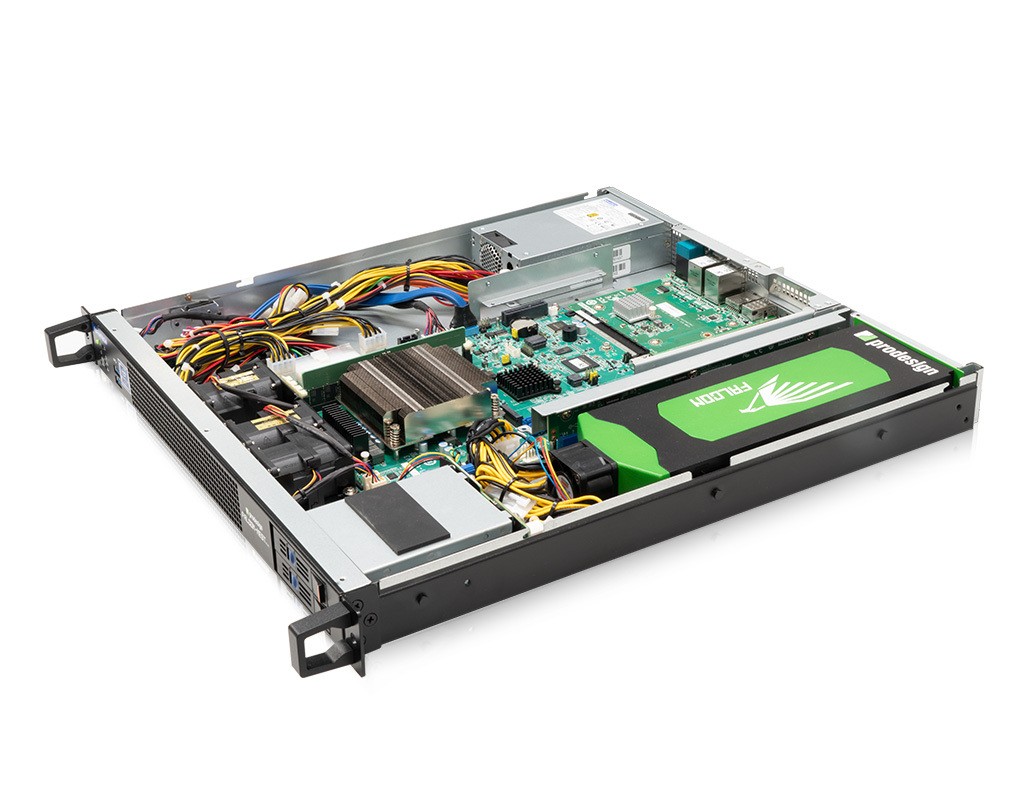

Falcon Nest mini Innenansicht schraeg

Within a compact 1U chassis and half depth, the little brother of the FALCON-NEST, the FALCON-NEST mini FPGA server boasts remarkable density, delivering exceptional I/O networking bandwidth and computational capability. It features one prodesign FALCON Stratix 10 FPGA accelerator and Intel Core i7-12700ECPU, a potent combination by Thomas Krenn that ensures top-tier scalable performance with German engineering excellence. This innovative solution not only sets new trends but also demonstrates a positive ecological impact compared to conventional server setups. The FALCON-NEST mini significantly reduces power consumption, occupies minimal space, and comes at an appealing price point.


  • 1 x prodesign FALCON Stratix® 10 Acceleration Card

  • 2 x Intel Xeon Silver Processor 4310T

  • Up to 8x 100Gbps or
    4x 200Gbps or
    32x 10/25Gbps

  • Ultra high density in a 1U mini
    FPGA server

  • Compact size with 44 x 480 x 438mm


Acceleration Cards

1 × prodesign FALCON Stratix® 10 Acceleration Card:

→ based on Intel® Stratix® 10 MX or NX FPGA incl. HBM2


Intel Core i7-12700E


32 GB (2x 16384 MB) ECC DDR5 4800 RAM 1 Rank
Up to 128 GB


480 GB SATA III SSD 2,5” mit PLP


1U CPU-Cooler (Intel LGA 1700, passive)
Internal Cooling via 4x Fan

Power Supply

Single 1U 650W or Redundant 1U 650W


1U rack system (44 x 480 x 438 mm)

Order Code


Availability & Order information

The prodesign FALCON-NEST can be individually configured in the Thomas-Krenn AG online shop: prodesign FALCON-NEST

For more Information please contact us!
